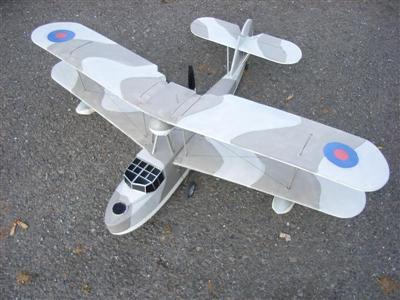

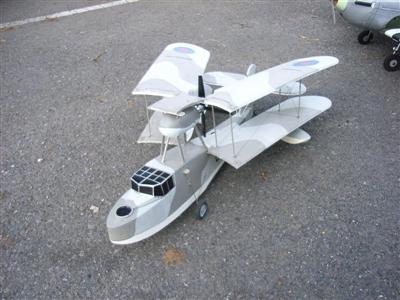

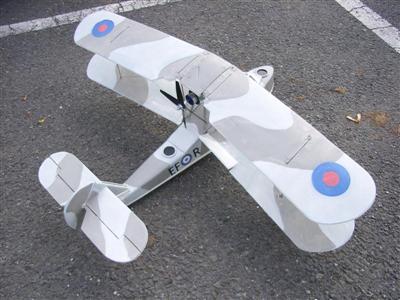

... Based on a free plan supplied with the Feb 2008 RCM&E magazine, design by Cyril Carr.
Span - 38" section, undercambered 6mm Depron sheet.
Weight - 11.2oz
Wing loading - 5 oz/sq.ft approx.
Motor - Blue Wonder 1700kv brushless
Prop - Very old MA 6x4 (x2) that had the hubs machined to slot together as a four blade.
Battery - 500mAh 3s Lipo
Built using 6mm and 3mm Depron sheet, floats and engine mount from blue foam.
The main undercarrige can be removed if required, (push in).
So far only flown from and over land, but should see water soon.
